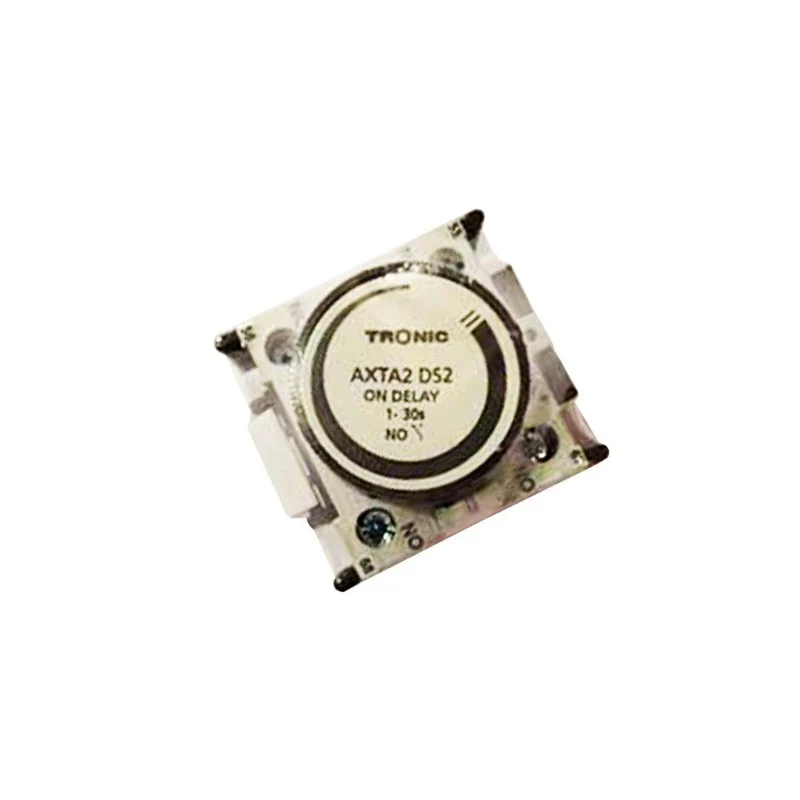

Time Delay Auxiliary Contact 1-30 Sec

Specifications:

• Colour: Black
• Amps: 10A
• Voltage: AC 660V
• Dimensions: Height 80mm x Width 50mm
• Material: Plastic
• Additional Features:
  • Front mountable on-delay timer
  • Time delay range from 0.1sec to 30sec
  • Rated insulation voltage of 690V conforming to IEC 60947-5-1 standard
  • Rated operational voltage of 660VAC
  • Conventional free air thermal current of 10A at less than or equal to 60°C

 Warranty

• 1 Year
